Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

Wuxi Huadong Industrial Electrical Furnace Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace from wholesalers

    Buy cheap Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace from wholesalers
    • Buy cheap Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace from wholesalers
    • Buy cheap Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace from wholesalers
    • Buy cheap Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace from wholesalers

    Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

    Ask Lasest Price
    Brand Name : JINGJIE
    Model Number : HCCM
    Certification : CE
    Price : negotiation
    Payment Terms : T/T or L/C
    Supply Ability : 10sets per month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

    Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type 120KW Melting and 80KW Holding Furnace


    Ⅰ.Process:

    Melting furnace--Chute--Holding furnace-Mould--Micro-travel reversible casting machine--Synchronizing shearing machines-- Hydraulic unit--cooling unit--Electromechanical control unit


    1.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;
    1.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;
    1.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.


    Ⅱ. Specifications:

    2.1 Material of casting specifications
    * Brass Bar
    2.2 Rod billets (round-shaped)
    * a. Diameter range -----Φ100mm
    * b. Number of production lines -----1- Strand



    Ⅲ. Equipment Components List of Horizontal Continuous Casting Production line for Brass Bar

    No.Equipment Name and Spec.UnitQuantityRemarks
    1Melting furnaceset1Including melting groove, coil, water jacket and iron core.
    2Chuteset1One in-use and one standby
    3Holding furnaceset1Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
    4Molten steel storage ladle and chuteset1For transferring material into the mold after sintering in holding furnace.
    5mold system (Ф150)set6Including graphite mold
    6Dragger (7.5KW)set1
    7Synchronized auto-tracking sawing machineset1
    8Material stock platformset1Chain drive, length of 3M
    9Header tankset1
    10Traction carrier rollerSet1
    11Cooling water distributorset1Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
    12Hydraulic systemset2

    Including hydraulic station and cylinder
    (The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

    13Electric-control operation system of electric furnaceset1Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
    14Process control operation systemset1For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.




    Ⅵ. Pictures of Brass Bar Horizontal Continuous Casting Machine

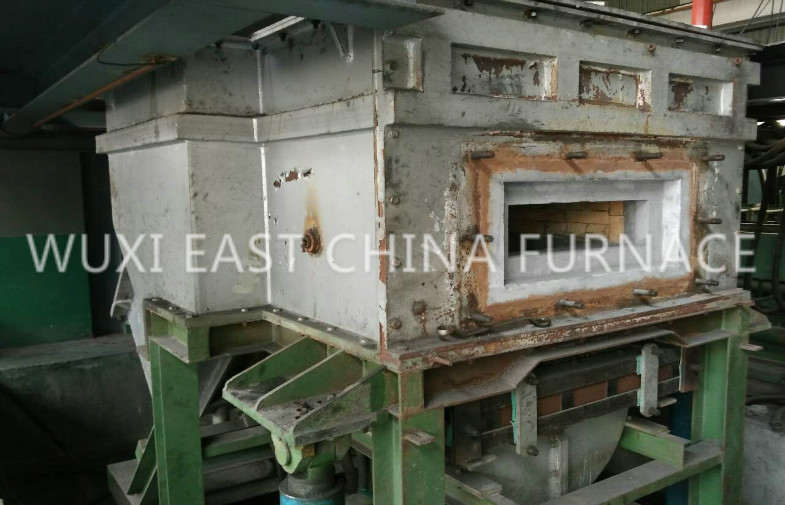

    MELTING AND HOLDING FURNACE




    MOULD

    Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace


    DRAGGER

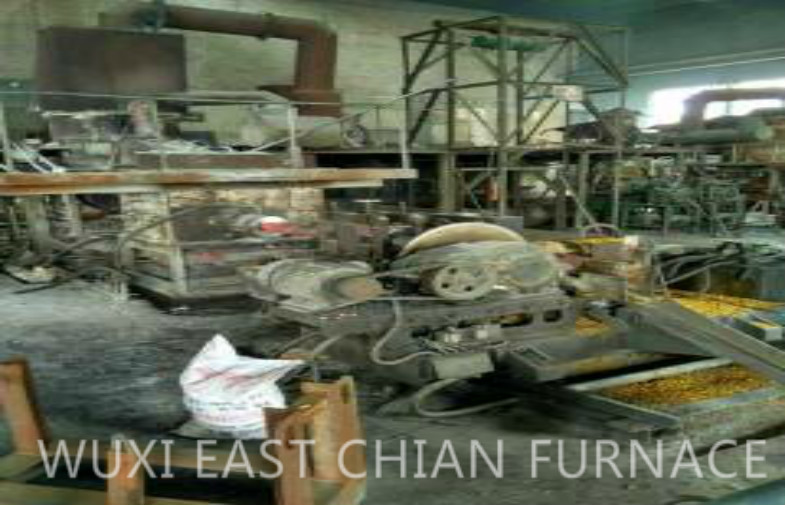

    SAWING MACHINE
    Brass Bar D100mm Horizontal Continuous Casting Machine 1-Strand Split Type Melting and Holding Furnace

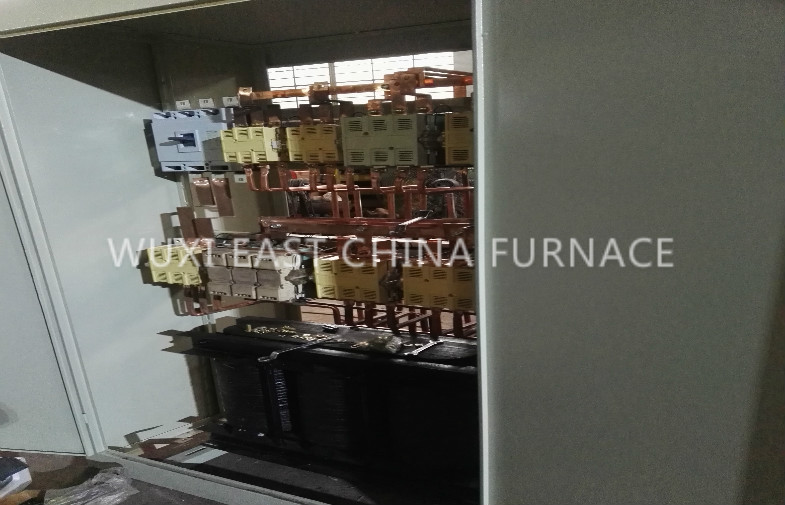

    ELECTRIC CONTROL SYSTEM
