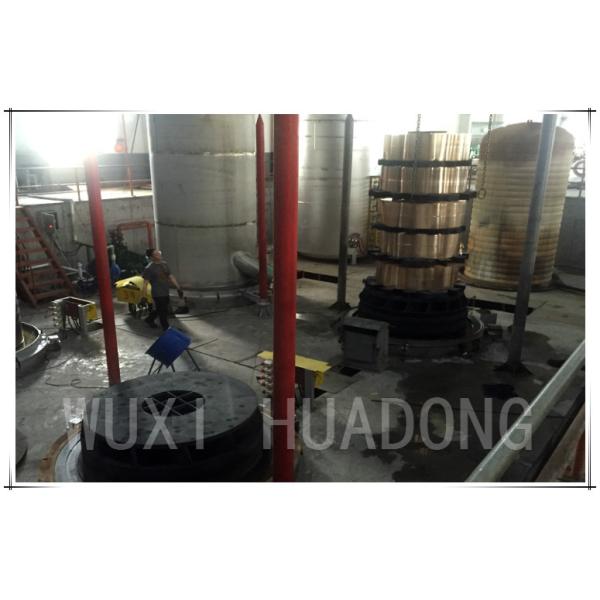

Electric Bell Continuous Annealing Furnace Fan Blade Diameter Φ800 ​

1 Equipment name: Electric Bell Continuous Annealing Furnace Fan Blade Diameter Φ800

2 Technical parameters :

2.1 Effective charging size: Φ1600×3200mm

2.2 Charging capacity: ≥8T

2.3 Rated temperature: 900℃

2.4 Furnace temperature homogeneity: ±5℃ (mid-posterior section of heat preservation)

2.5 Temperature rise of furnace shell surface: ≤50℃

2.6 Electric heating power: 220Kw

2.7 Number of temperature control zones: 2 Zone (double-temperature and double-control)

2.8 Power of circulating fan: 37/11Kw Fan blade diameter: φ800

2.9 Cooling fan power: 1.5Kw x 2

2.10 Lifting height: ≥9m

2.11 Cooling process: Wind and water double-cooling

2.12 Equipment cooling water: 3m³/h

2.13 Process cooling water: 8m³/h

2.14 Atmosphere protection: Ammonia decomposition gas (Hydrogen 75% + Nitrogen 25%)

3 Equipment composition and price: (Single set)

② The price quotation for 40m³ ammonia decomposition device with purification system

(Customer can also provide by himself), which can support 2 sets of furnaces mentioned-above.

For casting production lines and heat-treatment equipments, our company can also provide various types of spare parts (furnace shells, melting grooves, water jackets, iron cores, crystallizers, special refractory, temperature measurement devices, transformers, reactors, electric resistance heating elements, and mechanical parts etc.); Our company can also provide cold-processing equipments such as drawing mills and cold-rolling mills for tubes, rods and shapes, as well as scrap metal balers etc.
