    Copper Brass Bronze Rod Continuous Casting Machine Process , Upward Casting Machine

    Cooper Brass Bronze Rod Continuous Casting Machine Process , Upward Casting Machine​


    Equipment Composition

    Brass scraps(copper>62%) -- charging device (can match) - furnace system (melting furnace -- transition warehouse - holding furnace) - continuous casting machine crystallization moulding) -- dragger - speed device - automatic winding machine - for sale or deep processing

    Flow Chart

    Brass scrap is joined in the melting furnaces through the charging device (according to the user needs), (if the raw materials is not 1# red copper, our company can design and install the reverberatory furnace before melting furnaces to remove the copper impurity). The copper plate through W-type inductor into liquid, then flow smoothly from the transition storehouse to the holding furnace, and then is in the steady reduction process through the surface covered with charcoal, at last is crystallized swiftly to the cast copper rod by the crystallizerof the upcast plant by upward copper rod process at the same time, cast copper rod is upward casted intermittently through the two traction roller. The cast copper rod through the hauling machine, and the wheelframe, the speed adjusting gear, then to the automatic winding machine to wind copper rod.


    Main Technology Parameter For Copper Rod Up-casting Machine

    Annnual 2000MT D8mm-D14.4
    1Model: HDUCM-2000
    2Yearly capacity:2000mt
    3Furnace structure: 300type two- body furnace Clmeltingfurnace and holding furnace
    4Casting strands:4
    5Casting rod diameter : 14.4mm
    6casting spee:0 〜3000mn/min
    7annual working time:7920h
    8Liguidtracking precision:±2mm
    9Take-up coil standard: <p700mmx<pl500mnv<800mm
    10Copper melting velocity:260kg/h
    11Copper melting power consumption: <350kwh/lon
    12Take-up form: frequency automatic adjust
    13Take-up plate driven approach: PLC control, frequency adjustautomatic coiling
    14Material feeding methoctwhole piece of electrolytic copper cathode fed by electric hoist
    15Upward driven approach:dhven by the AC seivo motor transmission chain is driven by the gapless synchronous cog blet
    16Rod clamping methodair clamping
    17Operation interface : date display^seivo motor controDed by touch screen
    18Total power150KW AC three-phase 380V

    DATE OF DELIVERY

    Date of Delivery: To be delivered within 60 days after the contract becomes effective.


    PAYMENT ITEM

    Payment term:30%T/T in advance, 70%T/T before delivery.


    INSTALLATION SUPPORT

    The seller will send 3 service engineers to the buyer’s factory to supervise machine installation; the buyer should pay USD100/day/person for their wage. The buyer will be responsible for travelling expenses and accommodation.

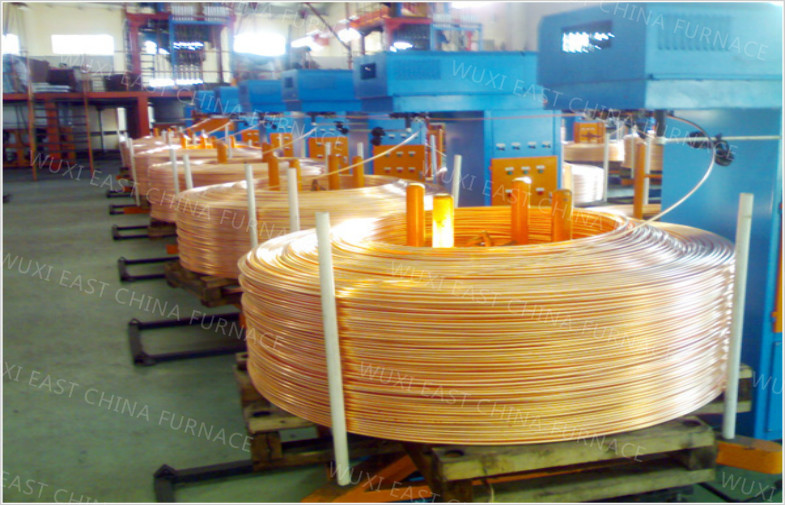

    PRODUCT PICTURES

    Copper Brass Bronze Rod Continuous Casting Machine Process , Upward Casting MachineCopper Brass Bronze Rod Continuous Casting Machine Process , Upward Casting MachineCopper Brass Bronze Rod Continuous Casting Machine Process , Upward Casting MachineCopper Brass Bronze Rod Continuous Casting Machine Process , Upward Casting Machine
